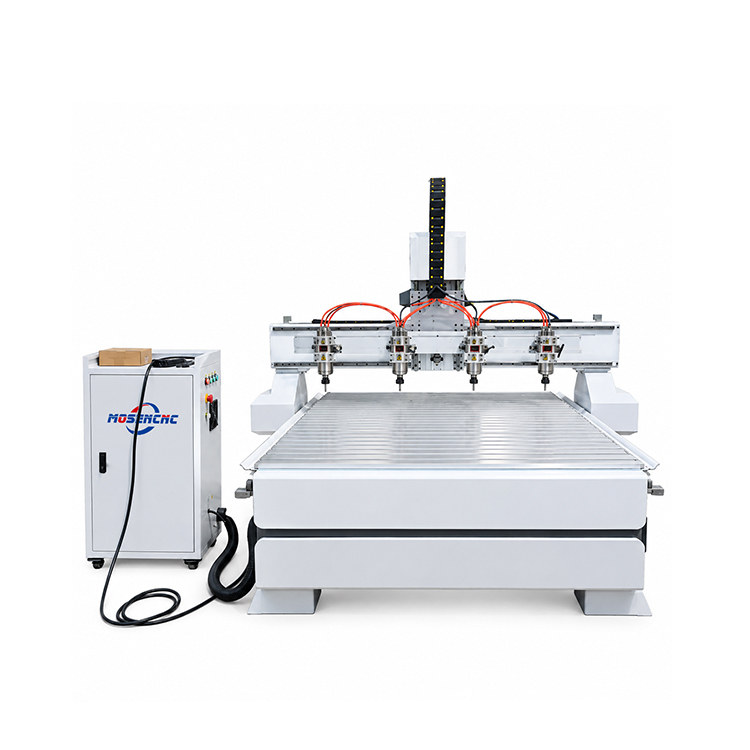

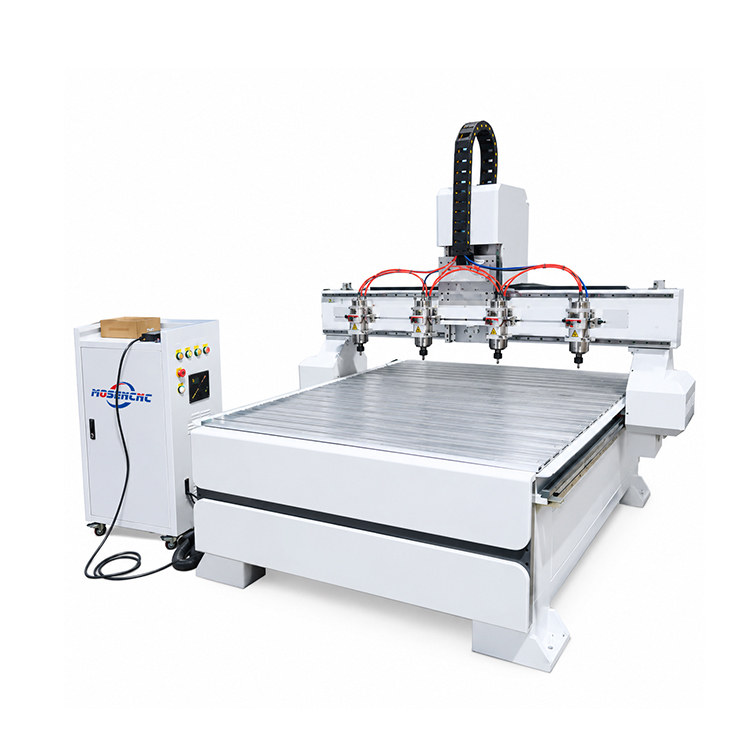

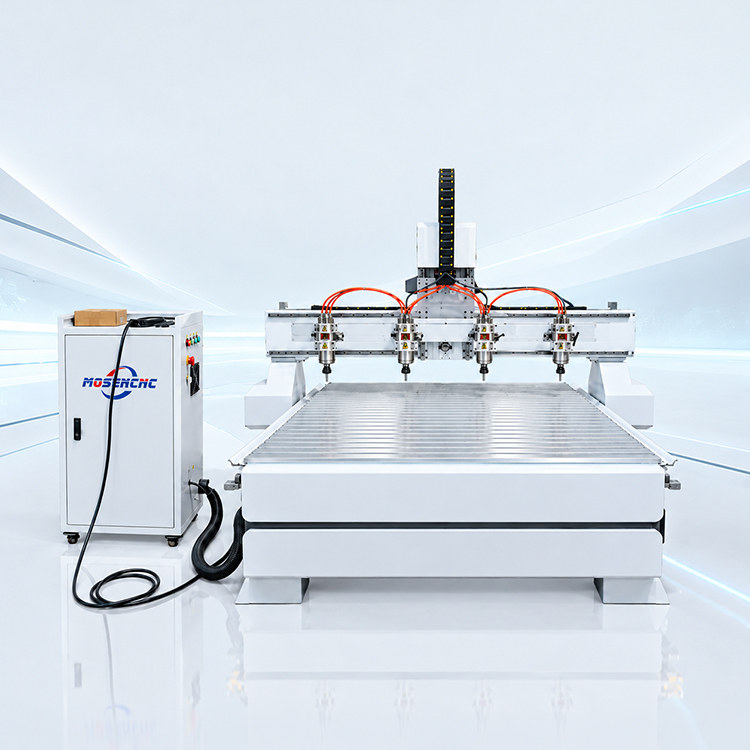

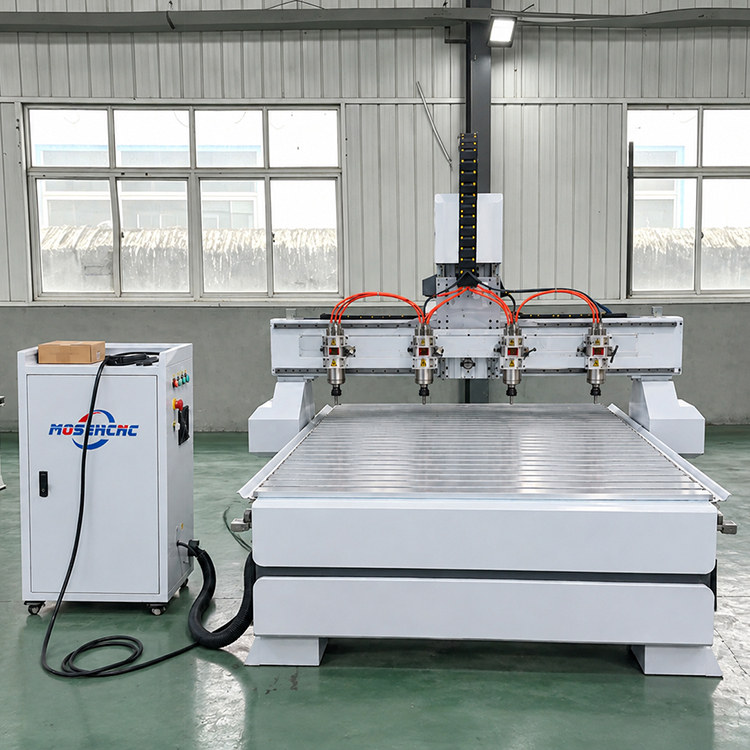

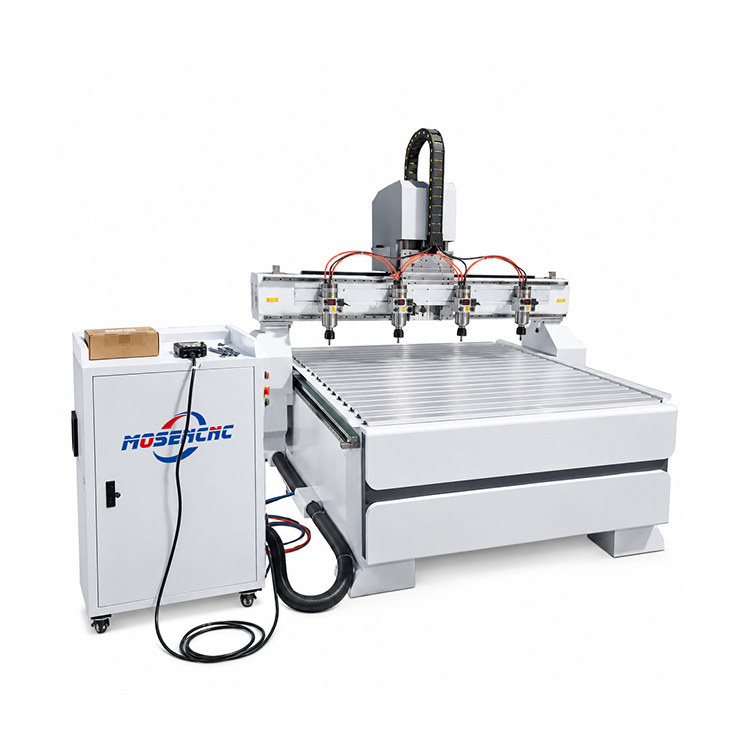

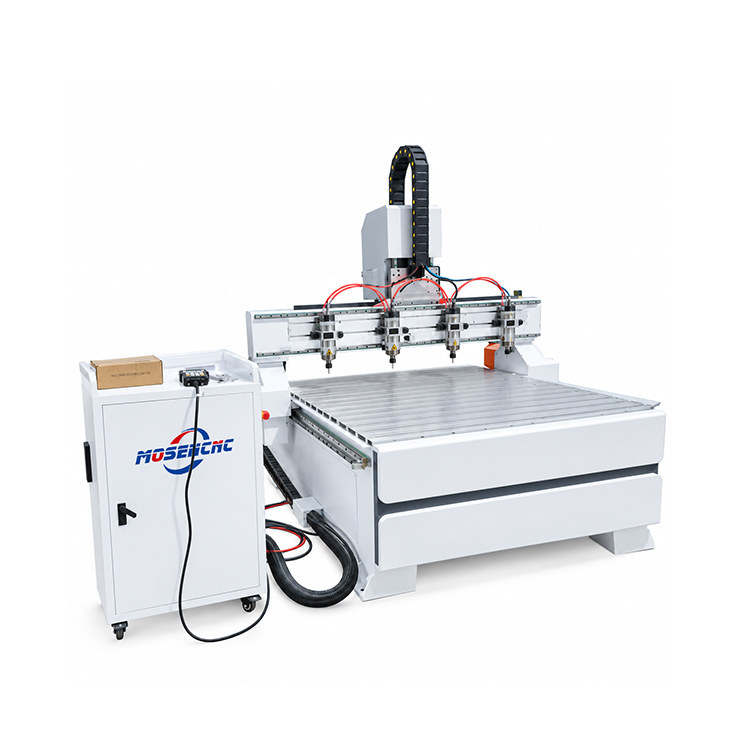

MS 1325-4H CNC Router
| Model | MS1325-4H |
| Table Type | T-Slot |
| X,Y,Z Working Area | 1300×2500×200mm |
| Spindle Configuration | 1‑drive‑4 multi‑heads |
| Spindle Power | HQD Water-cooling spindle |
| Spindle Speed | 24000RPM |
| Control System | DSP A11 |
| Motors & Drivers | Servo motor |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
| X,Y,Z Rail &Transmission | HIWIN 20mm Guide Rail(Optional:25mm/30mm) |
| Max. Rapid Travel Rate | ≥40000mm/min |
| Max. Working Speed | ≥20000mm/min |
| Command Code | G Code |
| Working Voltage | AC380V/220V |
| Frame Structure | Welding Structure |
| Running Environment | Temperature:0℃-45℃ |
| Interface | USB |
