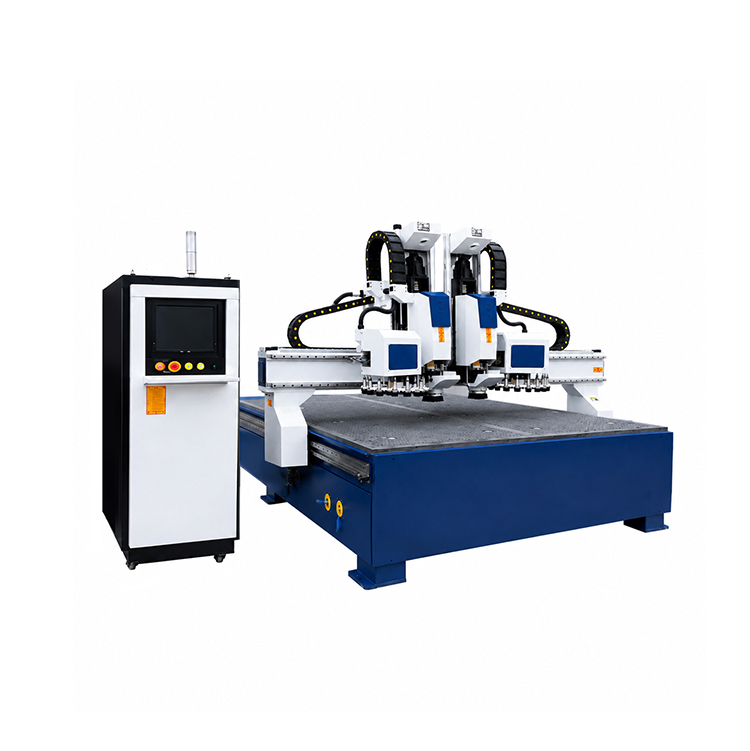

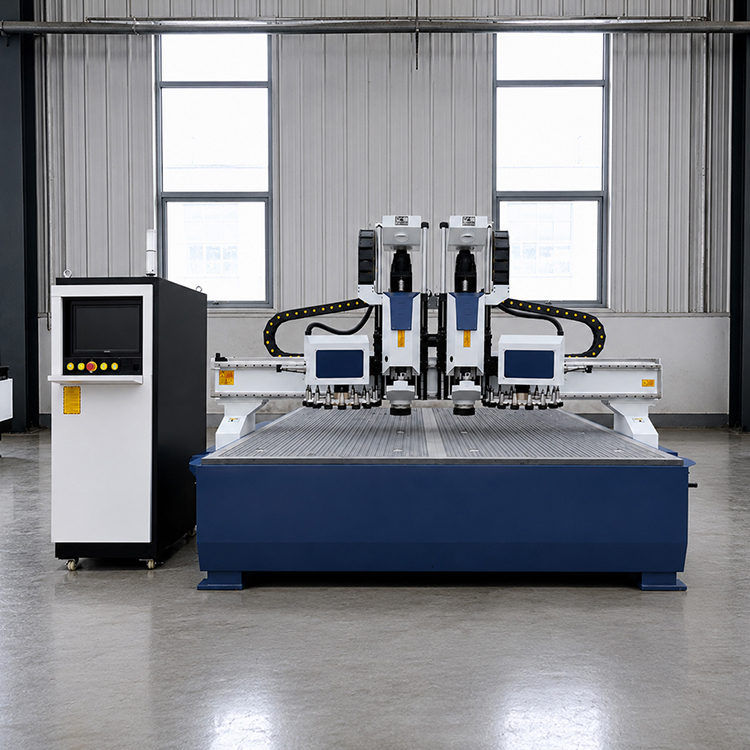

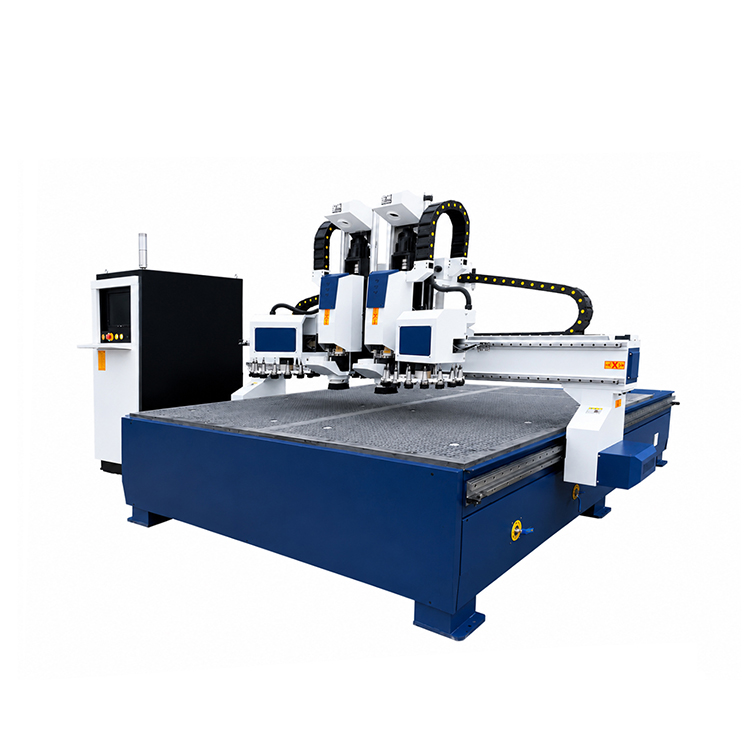

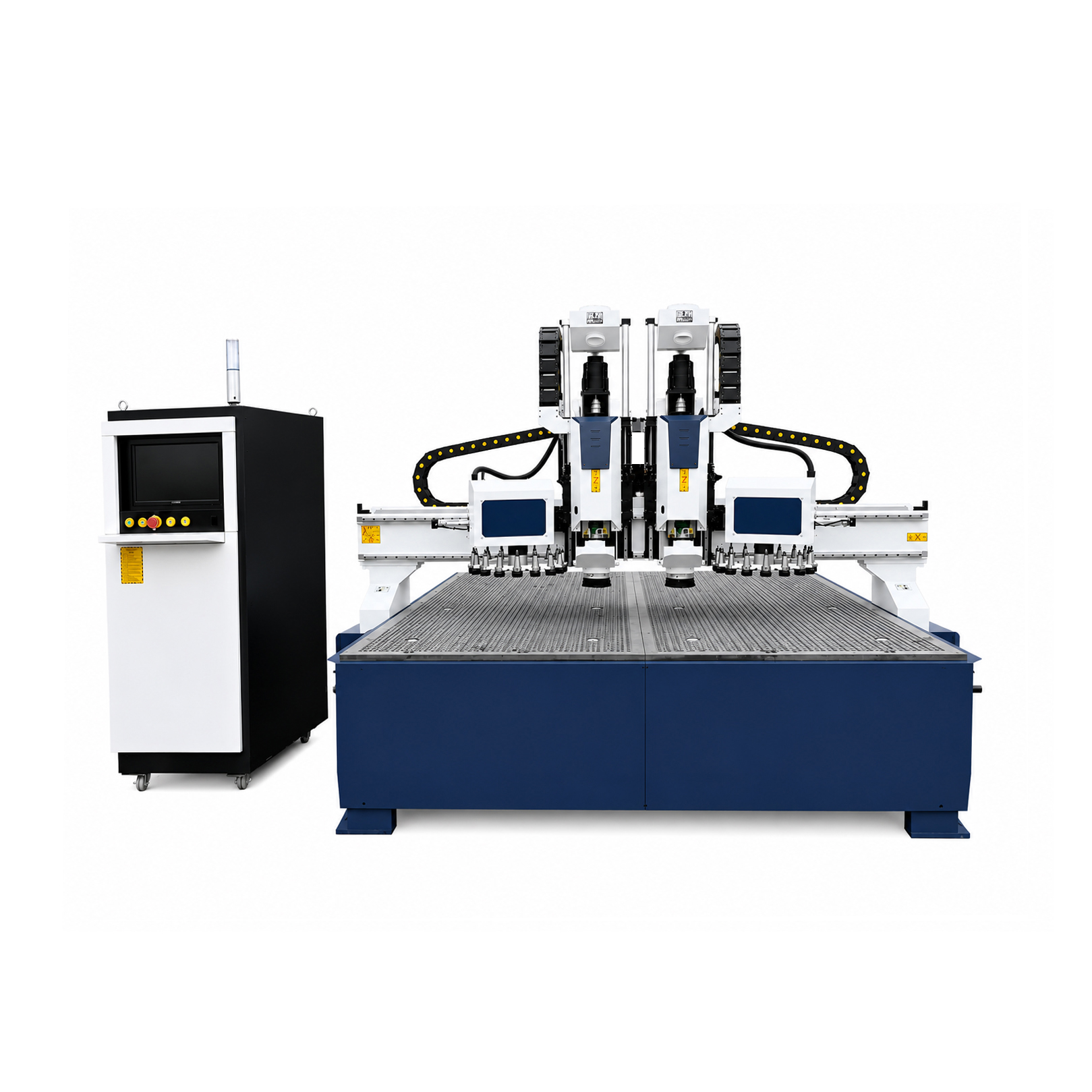

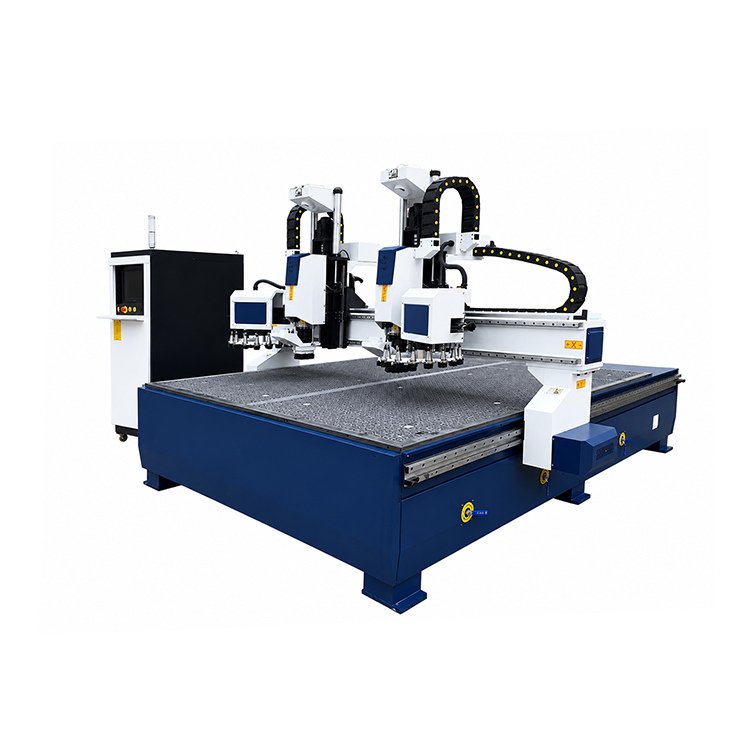

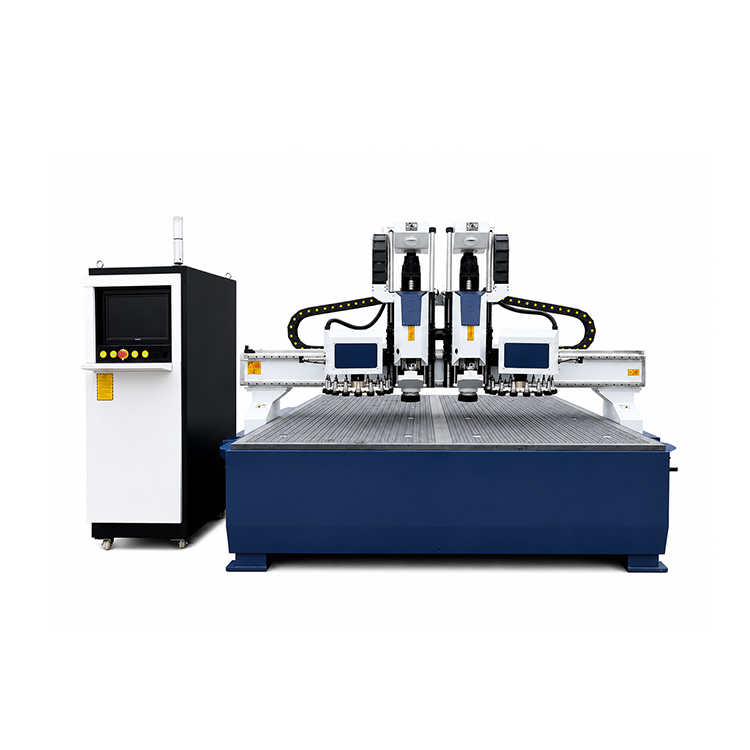

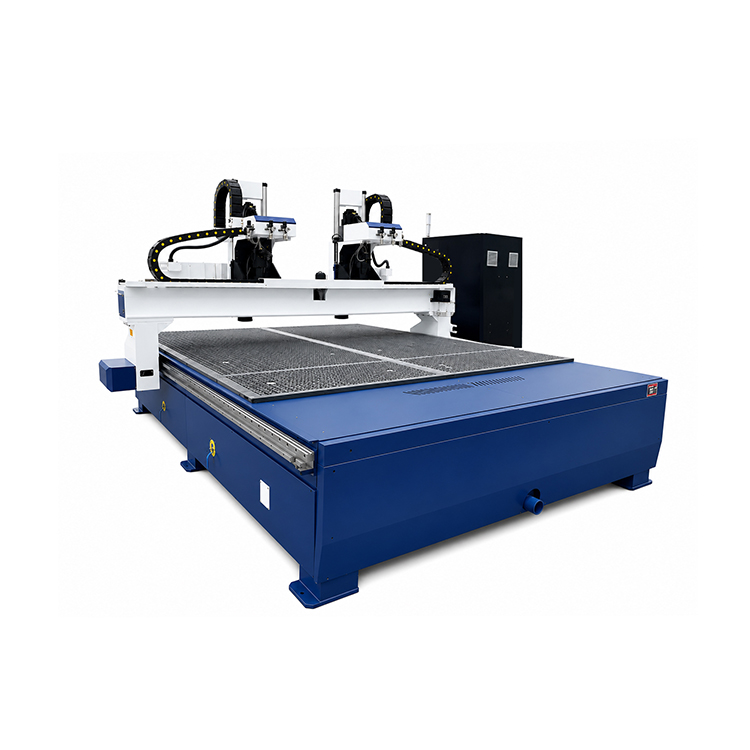

MS-2030-DHA CNC Router
| Model | MS-2030-DHA |
| Table Type | Vacuum Absorption |
| X,Y,Z Working Area | 2000×3000×200mm |
| Auto tool changer | Dual DISC ATC, 6 tools per disc, total 12 tools |
| Spindle Configuration | 2pcs HQD air‑cooling spindles |
| Spindle Power | 9.0kw HQD Air-cooling spindle |
| Spindle Speed | 24000RPM |
| Control System | LNC(Optional:SYNTEC) |
| Motors & Drivers | Servo motor |
| X,Y,Z Traveling Positioning Accuracy | ±0.01/2000mm |
| X,Y,Z Rail &Transmission | HIWIN 20mm Guide Rail(Optional:25mm/30mm) |
| Max. Rapid Travel Rate | ≥40000mm/min |
| Max. Working Speed | ≥20000mm/min |
| Command Code | G Code |
| Working Voltage | AC380V/220V |
| Frame Structure | Welding Structure |
| Running Environment | Temperature:0℃-45℃ |
| Interface | USB |
