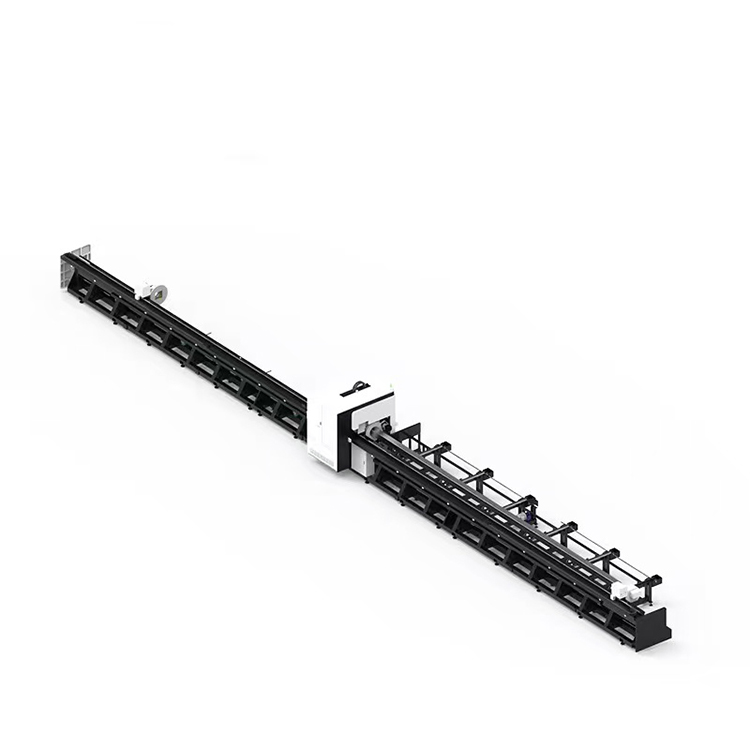

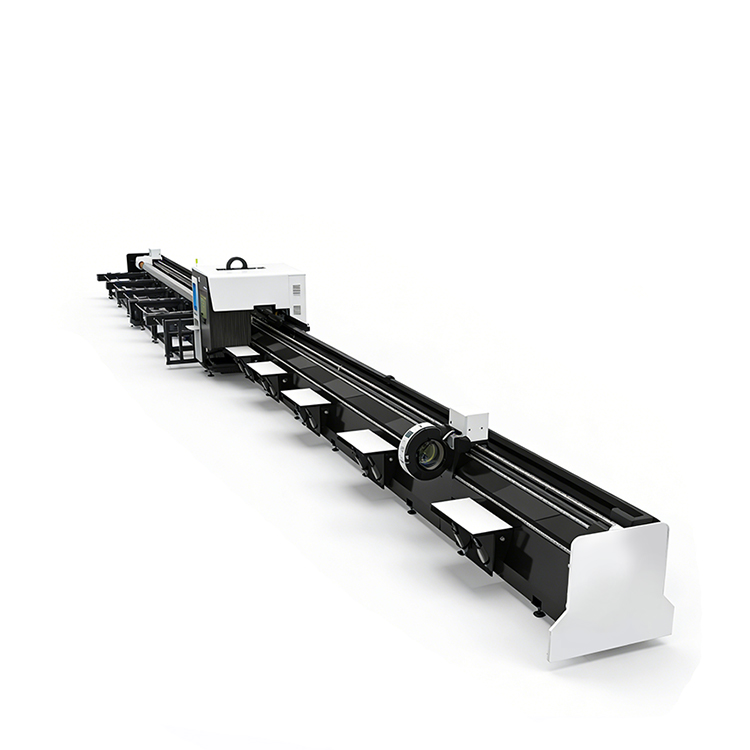

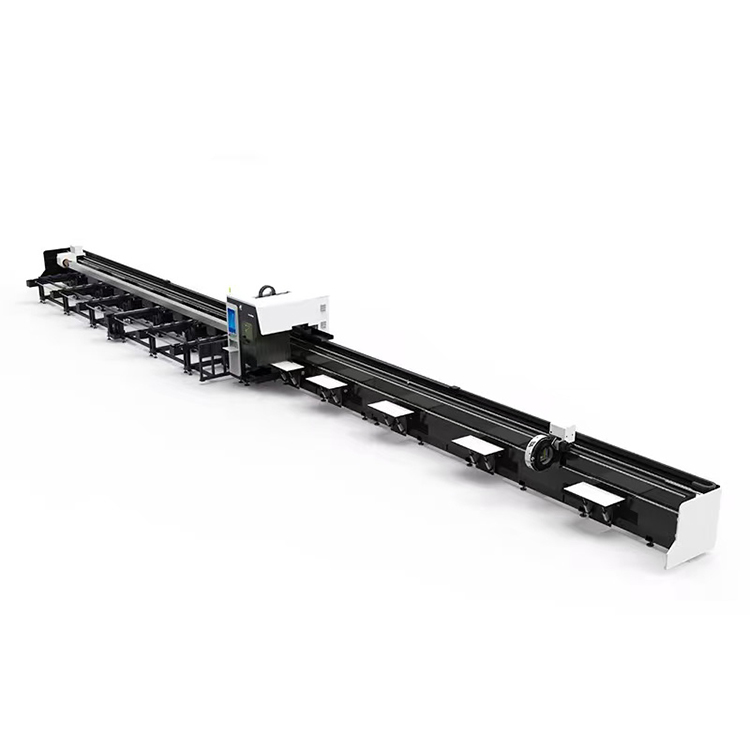

MS-6020 FPA Bevel Cutting Function Fiber
| Model | MS-6020FPH |
| Laser Type | Fiber Laser |
| Brand | Mosencnc |
| Laser Power | 1000w/1500w/2000w/3000w/6000w/12000w |
| Laser Source Brand | Raycus/IPG/MAX |
| Control System | FSCUT |
| Max Outside Diameter of Round Tubes | 10-220mm |
| Pipe Thickness | Depends on the power |
| Auto Feeding | Yes |
| Cutting Head | Raytools/BOCI etc. |
| Y Axis Single Feeding Length | 6-12mm |
| Z Axis Adjustment Range | 65mm |
| X Axis Adjustment Range | 360° |
| Machine Repeat Positioning Accuracy | ±0.05mm/1000mm |
| Machine Positioning Accuracy | ±0.1mm |
| Cutting Accuracy | ±0.1mm |
| Machine Idle Speed | 120m/min |
| Maximum Acceleration | 1.0G |
| X/Y Axis Max. Positioning Speed | 100m/min |
| Electricity Demand | 380V 50Hz(customizable) |
| Max Raw Material Length | ≤6200mm |
| Max Finished Part Length | 1200mm |
| Pipe Remain Length | 180mm |
| Multi-funtional cutting | Mitre cut, rectangular, slot, square, circular, cold mouth, specialprofiles |
